Description
- Flat tube radiator with elegant design
- Select best quality SPCC mild steel.
- Acid pickling and phosphating
- Cathodal electrophoresis primer
- Outdoor grade UV-resistant PE powder coating
- Test according to EN442
Features
-
Materials
Mild steel
-
Collectors
Φ35mm
-
Element
70X11mm, single flat tubes
-
Paint
Epoxy polyester powder
-

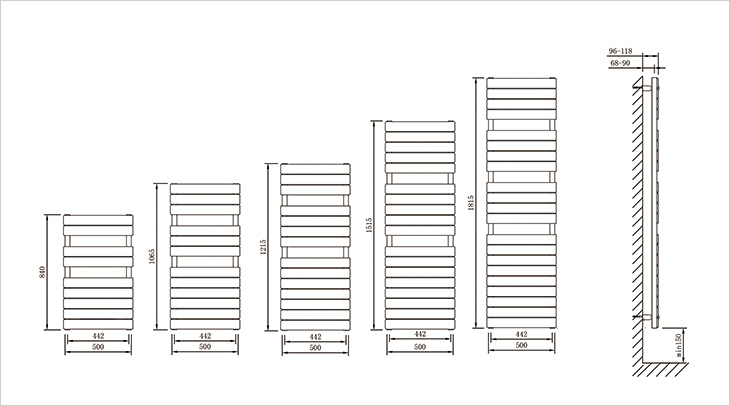

Heights
840 to 1815mm
-
Lengths
500mm
-
Connections
4X1/2" (threads: ISO 228)
-
Max operating pressure (MOP)
4bar
-
Test pressure
5.2bar
-
Max operating temperature (MOT)
95℃
-
Wall fixings
Included
-
Air vent / key / plug
Included
Technical parameters
| N=1 |
Elements range |
Height |
Length |
Depth |
Tap centers |
Weight |
Water content |
?50℃WattΦ |
?30℃WattΦ |
|
|
mm |
mm |
mm |
mm |
Kg |
litre |
75/65/20℃ |
55/45/20℃ |
| RA1S-080/050 |
9 |
600 |
500 |
45 |
442 |
10.44 |
3.70 |
424.8 |
222.3 |
| RA1S-100/050 |
12 |
900 |
500 |
45 |
442 |
13.78 |
4.85 |
561.6 |
293.4 |
| RA1S-120/050 |
14 |
1200 |
500 |
45 |
442 |
16.00 |
5.61 |
649.6 |
338.7 |
| RA1S-150/050 |
18 |
1500 |
500 |
45 |
442 |
20.45 |
7.14 |
829.8 |
431.3 |
| RA1S-180/050 |
21 |
1800 |
500 |
45 |
442 |
23.98 |
8.40 |
963.9 |
498.5 |
