Description

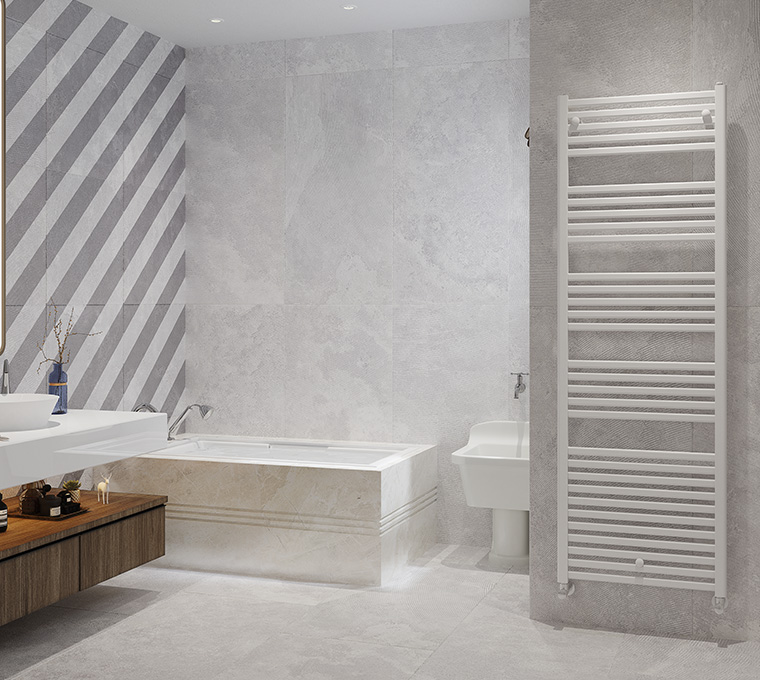

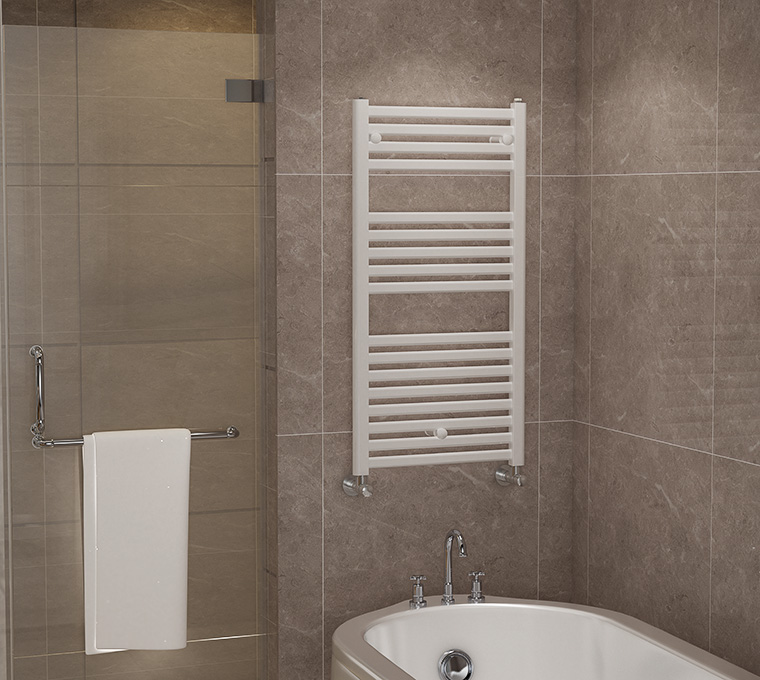

- Oval tube with classic design
- Select best quality SPCC mild steel.
- Fully automatic equment ensure cutting and punching accuracy up to μm.
- Automatic braze welding line provid stability and efficiency.
- Acid pickling and phosphating
- Cathodal electrophoresis primer
- Outdoor grade UV-resistant PE powder coating
- Every radiators pass through 3 Times 100% high pressure test.
Features
- Materials SPCC Mild Steel
- Collectors / Elements 40×30mm / 30×15mm oval
- Surface Treatment Cathodal Electrophoresis Primer
- Coating Outdoor grade uv-resistant PE powder Coating
- Connections 4×G1/2”
- Max Temperature 95℃
- Max. Working Pressure 10bar
Technical parameters
| OC1S | Tubes | Width | Pipe center | Depth | Height | Dry Weight | Water Content | Thermal Output ?T50℃(75/65/20℃) |
|
| mm | mm | mm | mm | Kg | L | W | |||
| OC1S-080/050 | 3+4+6 | 13 | 500 | 450 | 30 | 796 | 5.9 | 3.3 | 403 |
| OC1S-100/050 | 4+5+8 | 17 | 980 | 7.6 | 4.2 | 509 | |||
| OC1S-120/050 | 4+4+4+8 | 20 | 1210 | 9.1 | 5.4 | 612 | |||
| OC1S-150/050 | 5+5+5+11 | 26 | 1480 | 11.5 | 6.7 | 797 | |||
| OC1S-180/050 | 5+5+5+5+11 | 31 | 1808 | 13.6 | 8.2 | 946 | |||
| OC1S-080/060 | 3+4+6 | 13 | 600 | 550 | 30 | 796 | 6.8 | 3.9 | 469 |
| OC1S-100/060 | 4+5+8 | 17 | 980 | 8.9 | 4.9 | 589 | |||
| OC1S-120/060 | 4+4+4+8 | 20 | 1210 | 10.4 | 6.6 | 707 | |||
Standard thermal output at ， ?T50℃（75 / 65 / 20℃） according to EN442-2 2014
| OC1C | Tubes | Width | Pipe center | Depth | Height | Dry Weight | Water Content | Thermal Output ?T50℃(75/65/20℃) |
|
| mm | mm | mm | mm | Kg | L | W | |||
| OC1C-080/050 | 3+4+6 | 13 | 500 | 450 | 45 | 796 | 5.9 | 3.3 | 409 |
| OC1C-100/050 | 4+5+8 | 17 | 980 | 7.7 | 4.2 | 517 | |||
| OC1C-120/050 | 4+4+4+8 | 20 | 1210 | 9.2 | 5.4 | 623 | |||
| OC1C-150/050 | 5+5+5+11 | 26 | 1480 | 11.8 | 6.7 | 807 | |||
| OC1C-180/050 | 5+5+5+5+11 | 31 | 1808 | 13.9 | 8.4 | 958 | |||
| OC1C-080/060 | 3+4+6 | 13 | 600 | 550 | 45 | 796 | 6.9 | 3.9 | 472 |
| OC1C-100/060 | 4+5+8 | 17 | 980 | 9.1 | 4.9 | 593 | |||
| OC1C-120/060 | 4+4+4+8 | 20 | 1210 | 10.7 | 6.6 | 718 | |||
Standard thermal output at ， ?T50℃（75 / 65 / 20℃） according to EN442-2 2014

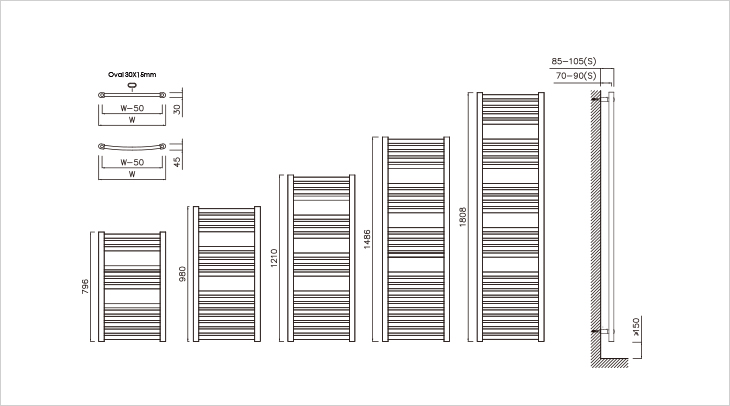

Size
