Description

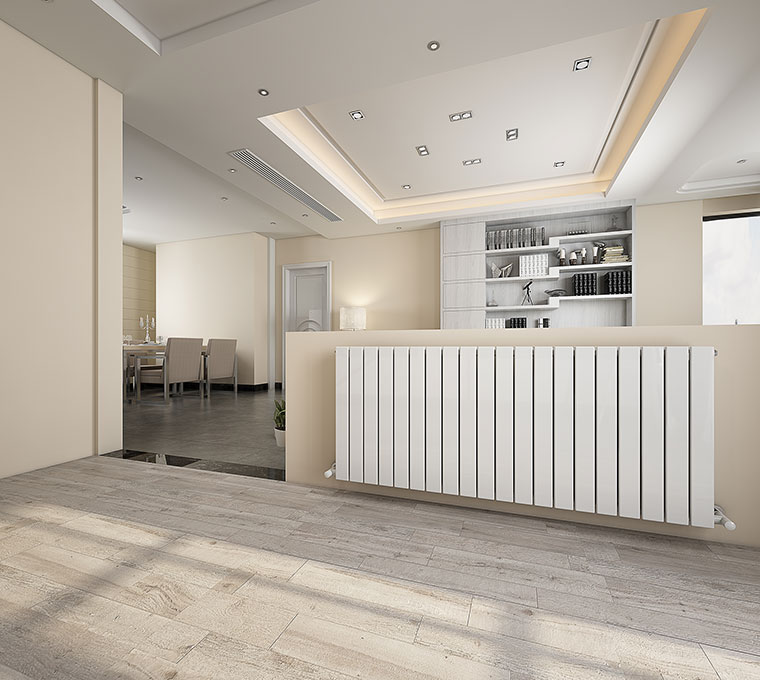

- The Ultra-thin design flat tube radiator
- Select best quality SPCC mild steel.
- Acid pickling and phosphating
- Cathodal electrophoresis primer
- Outdoor grade UV-resistant PE powder coating
- Test according to EN442
Features
-
Material
Mild steel
-
Collectors
Φ35mm
-
Elements
70X11mm, double flat tubes
-
Paint
Epoxy polyester powder
-
Heights
600 to 2200 mm
-
Lengths
305 to 2180 mm
-

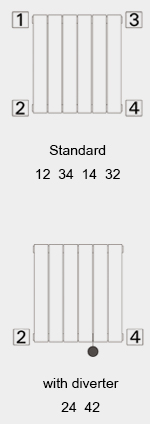

Connections
4X1/2" (threads: ISO 228)
-
Max operating pressure (MOP)
4bar
-
Test pressure
5.2bar
-
Max operating temperature (MOT)
95℃
-
Wall xings
Included
-
Air vent / key / plug
Included

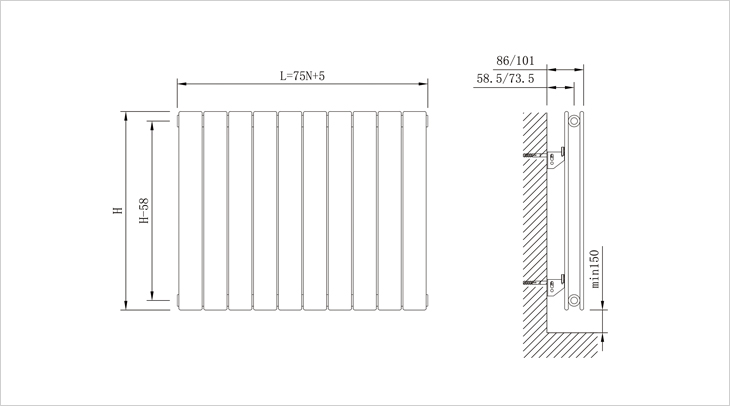

Technical parameters
| N=1 |
Elements range |
Height |
Length |
Depth |
Tap centers |
Weight |
Water content |
?50℃WattΦ |
?30℃WattΦ |
|
|
mm |
mm |
mm |
mm |
Kg |
litre |
75/65/20℃ |
55/45/20℃ |
| ED20V-01/060 |
4~30 |
600 |
75N+5 |
55 |
542 |
2.42 |
0.75 |
81.5 |
42.8 |
| ED20V-01/090 |
4~30 |
900 |
75N+5 |
55 |
842 |
3.51 |
1.06 |
116.3 |
60.9 |
| ED20V-01/120 |
4~30 |
1200 |
75N+5 |
55 |
1142 |
4.61 |
1.37 |
149.4 |
78.1 |
| ED20V-01/150 |
4~30 |
1500 |
75N+5 |
55 |
1442 |
5.71 |
1.69 |
180.5 |
93.9 |
| ED20V-01/180 |
4~30 |
1800 |
75N+5 |
55 |
1742 |
6.81 |
2.00 |
217.3 |
112.7 |
| ED20V-01/200 |
4~30 |
2000 |
75N+5 |
55 |
1942 |
7.54 |
2.21 |
242.8 |
125.7 |
| ED20V-01/220 |
4~30 |
2200 |
75N+5 |
55 |
2142 |
8.28 |
2.42 |
263.3 |
135.9 |
